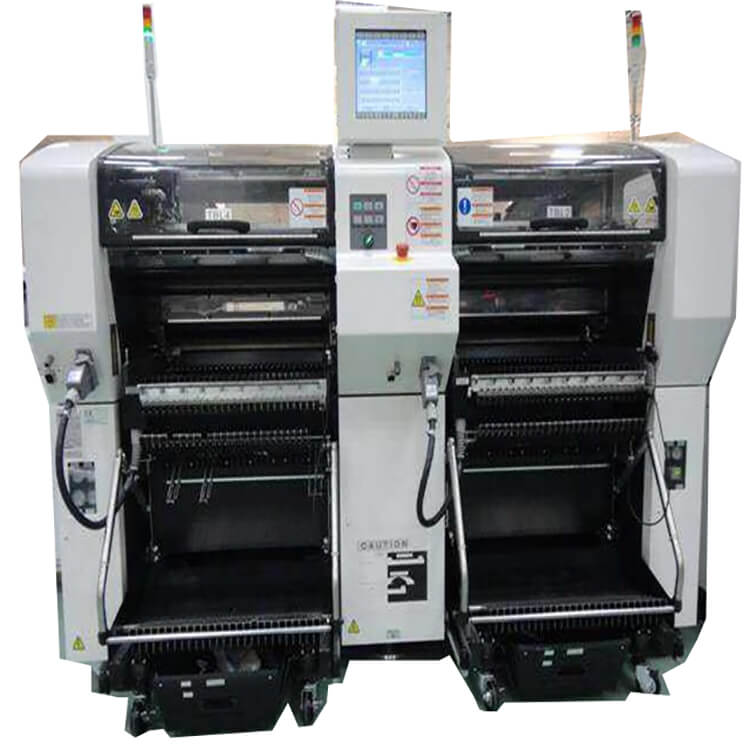

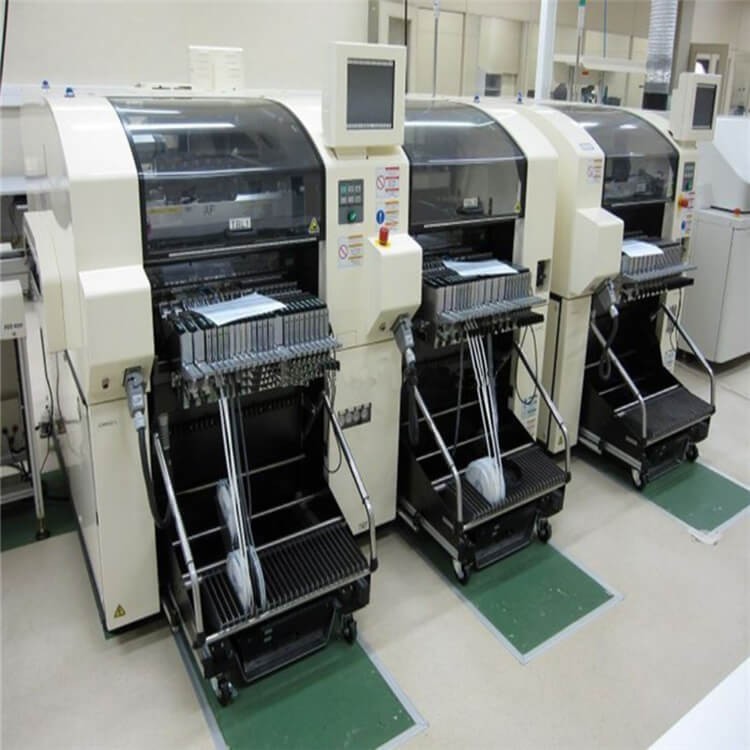

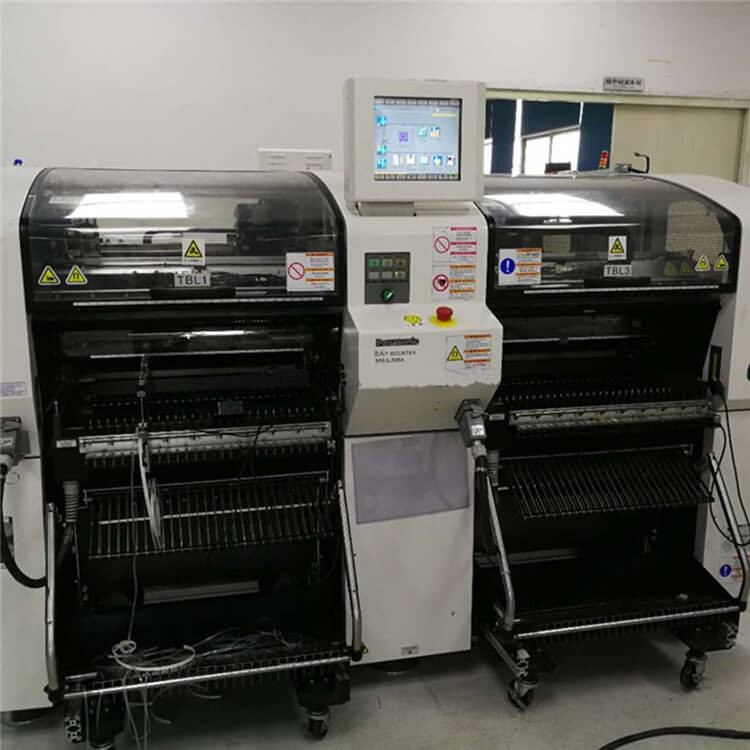

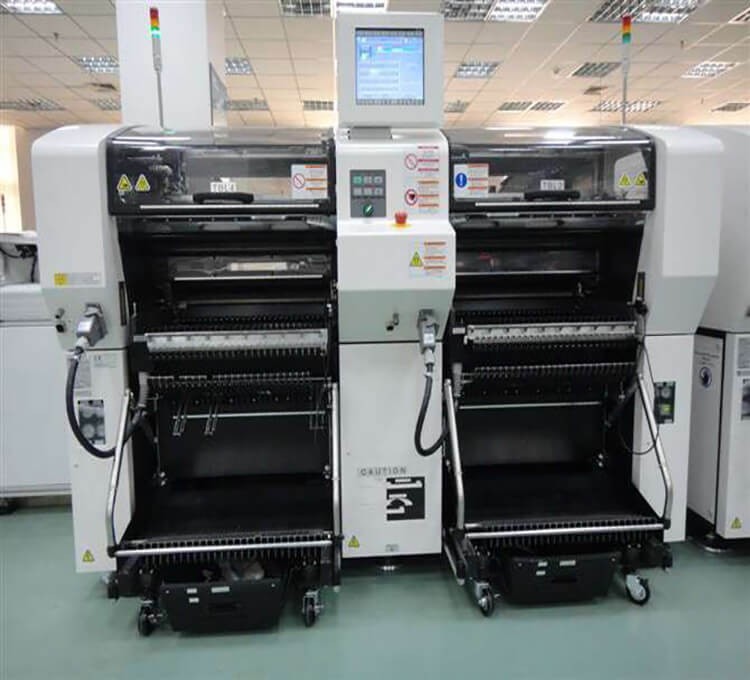

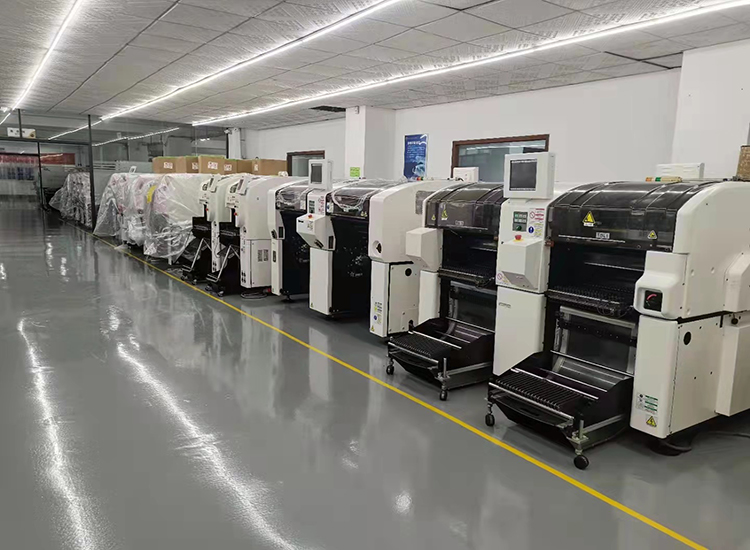

Panasonic CM602 Pick and Place Machine

Panasonic CM602 PCB Placement Machine|Panasonic Machine
Features & Benefits:
One platform solution for any kind of production
Commonality with existing equipment
Linear motor drive increases reliability and reduces maintenance
Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards
Panasonic's CM602 high speed multi-functional placement machine lets you achieve world-class
throughput via the light head, high-speed recognition camera and linear motor. Fully compatible
with our successful CM series feeder units, nozzles and operation, this single platform solution
can place up to 100,000 components per hour by selecting the best-suited combination of
high-speed and multi-functional heads. Fast, flexible and intelligent - the CM602 takes your
productivity to new heights.
Model ID CM602-L
PCB dimensions (mm) L 50 x W 50 to L 510 x W 460
High-speed head 12 nozzles
Max.speed 100 000 cph (0.036 s/chip)
Placement accuracy ±40 µm/chip (Cpk1)
Component dimensions (mm (01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm
High-flexibility head LS 8 nozzles
Max.speed 75 000 cph (0.048 s/chip)
Placement accuracy ±40 µm/chip, ±35 µm/QFP 24 mm,±50 µm/QFP <24 mm (Cpk1)
Component dimensions (mm) (01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8
When the generalized Ver.5 is optionally selected (01005”)0402 chip *5 to L 100 mm × W 50 mm × T 15 mm *6
Multi-functional head 3 nozzles
Max.speed 20 000 cph (0.18 s/QFP)
Placement accuracy ±35 µm/QFP (Cpk1)
PCB exchange time 0.9 s (Board length:up to 240 mm Under optimum conditions)
Electric source 3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA
Pneumatic source *1 0.49 MPa, 170 L /min(A.N.R.)
Dimensions (mm) W 2 350 x D 2 290 *2 x H 1 430 *3
Mass *4 3 400 kg
