PANASONIC Pick and Place Machine

Panasonic AM100 Pick and Place Machine

weight: 3 400 kg
Max.speed 100 000 cph
Application components:0402 (01005)
PCB dimensions:L 510 x W 460
Product description: Panasonic CM602 Pick and Place Machine,
Mounting Speed: 100,000 CPH,
Application components:0402 (01005),
PCB dimensions:L 510 x W 460, weioght: 3 400 kg
  • Product Detail

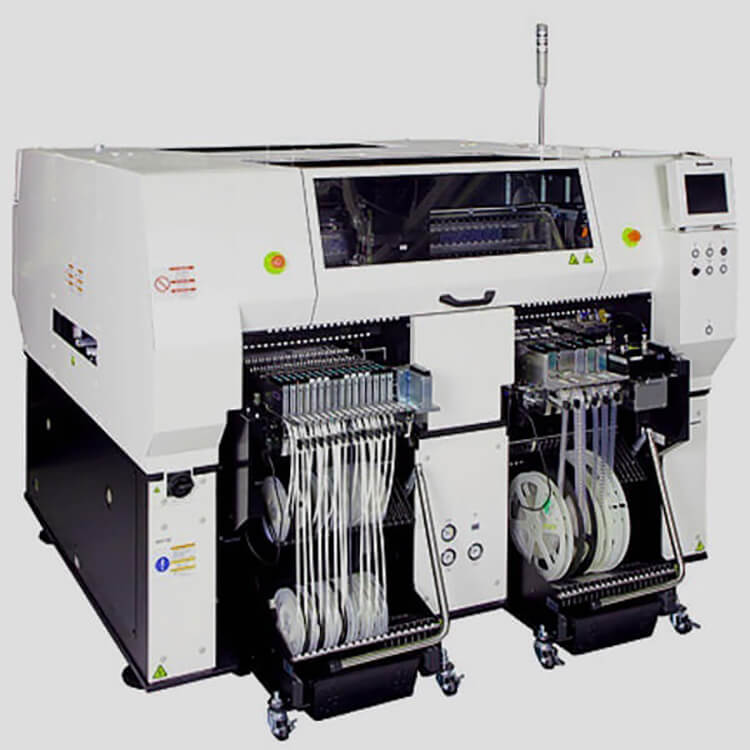

Panasonic AM100 Pick and Place Machine

Panasonic SMT AM100 Modular Placement Machine specification and feature

The AM100 maintains the high standards for capability, flexibility, and reliability customers expect from Panasonic in a cost-effective, incrementally scalable, high-mix SMT solution. Only one machine is required to get production started and it's easy to add more units and/or technologies as demands change.
Panasonic's AM100 modular placement machine features a single head (single beam) capable of placing an impressive component array including: 0402mm to 120x90x28mm, large connectors, odd-shaped components, and advanced packaging types such as PoP
Prepare the next product while production is running on the AM100 for non-stop changeover and put to use a variety of highly flexible configurations and component supply types. Flexible setup is further enhanced in the AM100 by Feeder Anywhere and Nozzle Anywhere features. Large boards can be processed and advanced features including a component thickness camera, auto support pin exchange, PCB warpage detection, and tray verification are also available.
Features & Benefits
One head, one machine solution with a very large component range
Interchangeable feeders, multi-functional nozzles, and chucks with the CM and NPM series Cost-effective and high quality production
Standard Features:
14-nozzle Highly Versatily Head
High Resolution Line Camera
Nozzle Changer
CAD Data Import Utility
Pre-defined Part Libray
Adaptive Component Pick
Auto Placement Calibration
Multi-job Production Scheduling
Auto Feeder Teach
Fiducial Teach with Auto Adjust
Virtual PCB Inspection
PoP Process Capable
NPI Software Tool Set
Model Name (Number) AM100 (NM-EJM4D)
Concept              Scalable Single Gantry Hyrbrid Drive Platform
Drive System         Highly Accurarate Linear Motor Hybrid Drive
Component Alignment  Digital Color Line Scan Camera, Fixed Position
Head Design          14-spindle Ultra High Flex Head
Board Dimensions
510 x 460mm (20 x 18”) Standard
1,200 x 460mm (47x18”) Optional
Board Thickness    up to 8mm
Placement Accuracy
±40 micron Cpk ≥1.0 Chip
±30 micron Cpk ≥1.0 QFP
Ideal: 35,800 cph
IPC9850: 22,000 cph
Component Range
Minimum: 01005 (0402M)
Maximum: 120x90mm (4.7x3.5”) & 150x25mm (6x1”)
Height: up to 28mm (1.1”)
Bumps: 0.15mm diameter, 0.3mm pitch
Feeder Capacity
Reels: up to 160 reels
Tubes: up to 60 tubes
Trays: up to 40 trays
Electric: 3 Phase AC 200/220V ±10V, AC 380/400/420/480V ±20V 2.0 kVA400V 2 KVA
Pneumatic Min 0.5 MPa to Max 0.8MPa, 200 L/min (A.N.R.)
Mass: 2370 Kg (Main Body with 4 Feeder Banks)
Dimensions: W 1,970 x L 2,019 x H 1,450mm
