PANASONIC Pick and Place Machine

Panasonic SMT Chip Mounter NPM-TT2

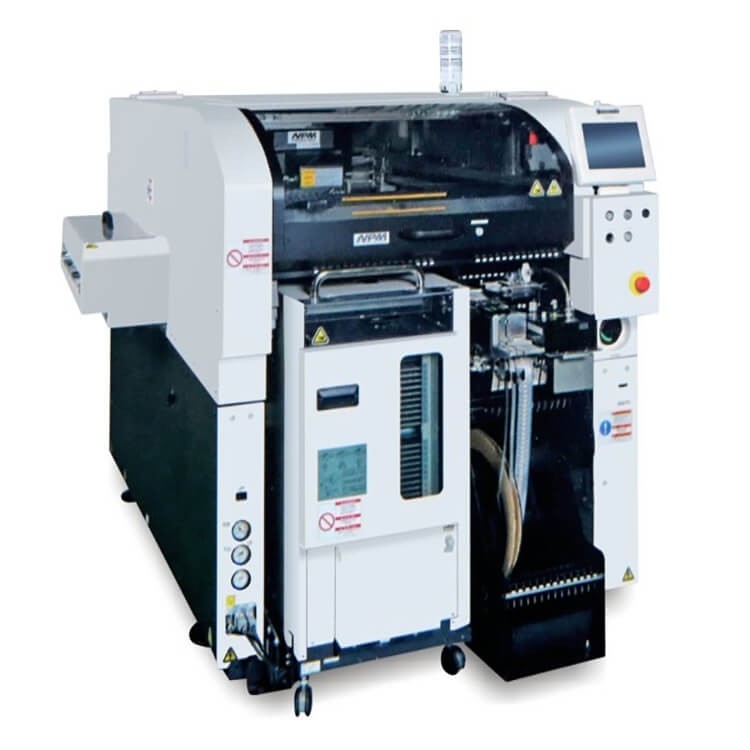

Panasonic NPM-TT2 Pick and Place Machine
Max PCB:510 x 590mm
Application components:0402 (01005)
Compatible with lightweight 8-nozze or 3-nozzle head V2
Product description: Panasonic NPM-TT2 Pick and Place Machine Twin Tray Assembly Platform

  • Product Detail

Panasonic SMT Chip Mounter NPM-TT2

Panasonic NPM-TT2 Pick And Place Machine NM-EJM1E

The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix.

Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.

As common throughout the NPM-series, the NPM-TT2 features a Multi-Recognition Camera that increases processing speeds with a dynamic vertical-view of component condition and eliminating the need for a standard line cameras and independent 3D sensors.

With a new, advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.

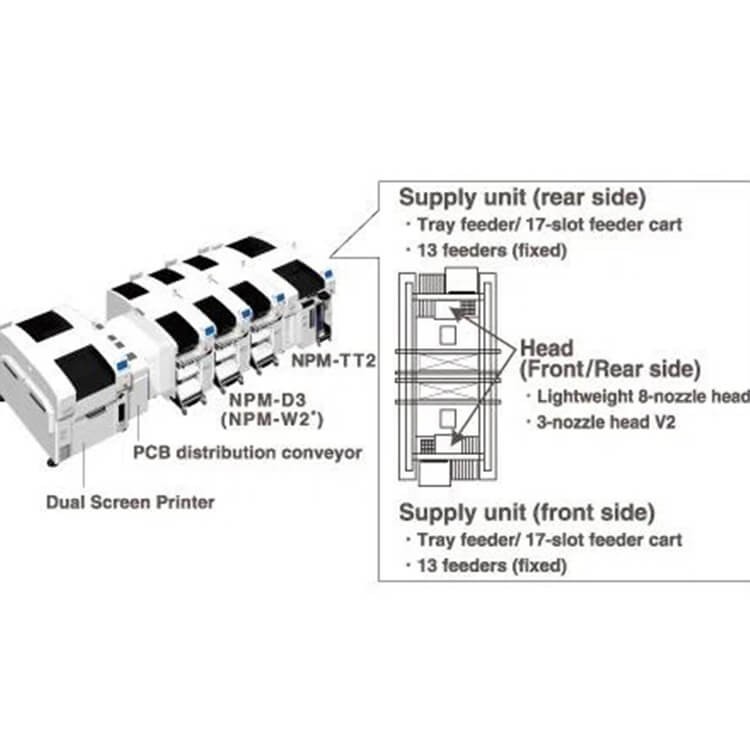

Designed to blend seamlessly with other Panasonic NPM-series equipment as well at the NPM-DX, the NPM-TT2 optimizes throughput in a high-volume, dual-lane environment

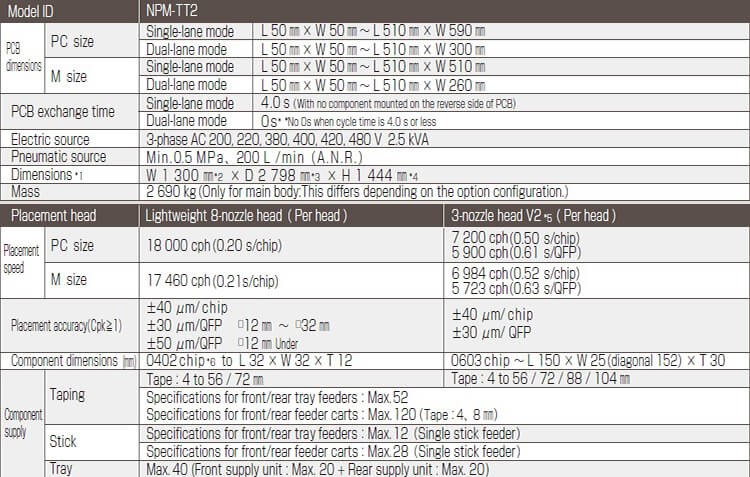

1 : Only for main body
2 : 1 820 mm in width if extension conveyors (260 mm) are placed on both sides

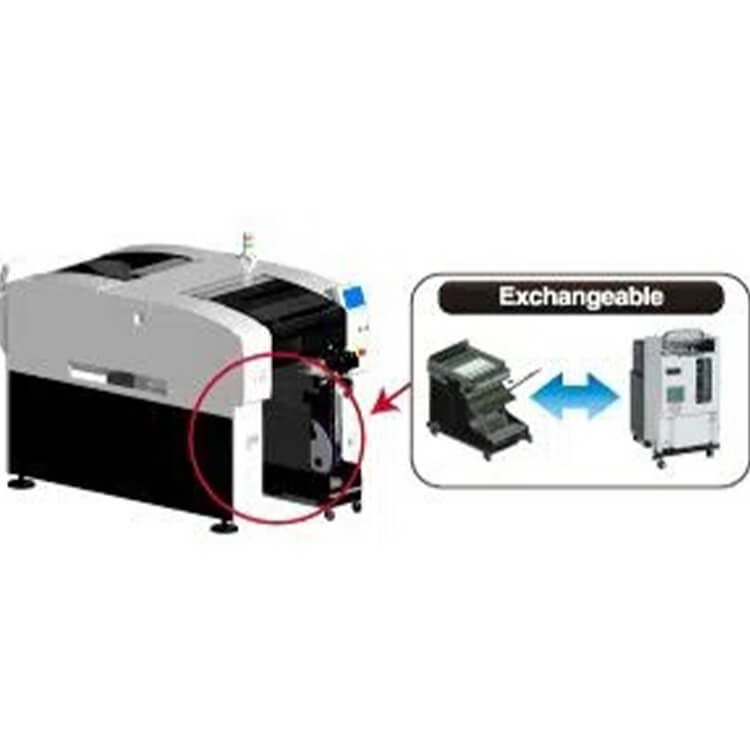

3 : Dimensions shown are specifications for front/rear tray feeders . Dimensions of specifications for front/rear feeder carts : 2 893 mm
4 : Excluding the monitor, signal tower and ceiling fan cover.
5 : 3-nozzle head V2 cannot be installed on NPM-D3
6 : The 0402 chip requires a specific nozzle/feeder.
