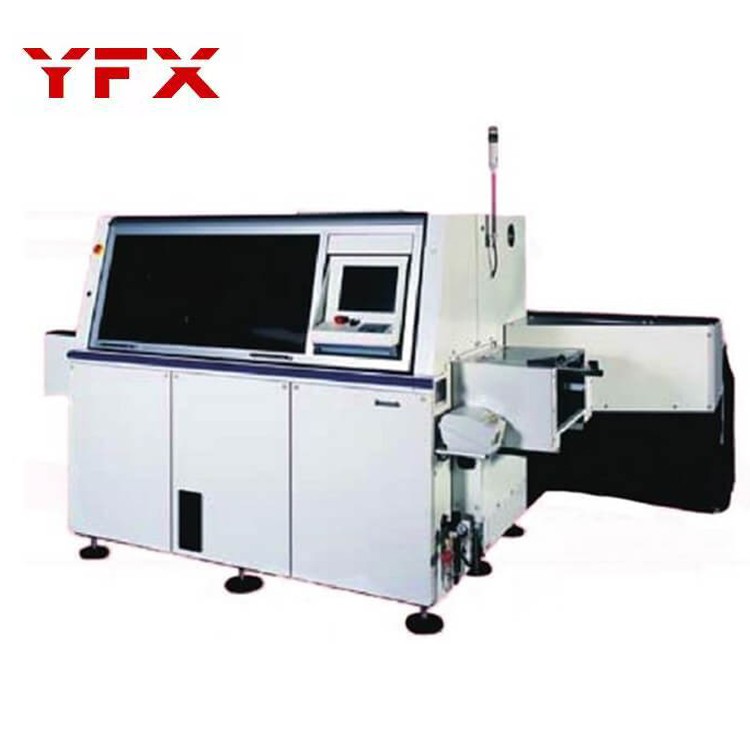

Item

Details

Power supply

Rated voltage

Frequency

Rated capacity

3-phase 200 / 220 V ± 10 V selectable

380 / 400 / 420 / 480 V ±20 V selectable

50 / 60 Hz

Approx. 3.5kVA

Air supply

Supplied air pressure Min. 0.45 MPa to Max. 0.8 MPa

(Operation air pressure: 0.45 ~ 0.5 MPa)

Supplied air mass Approx. 80 L / min. (A.N.R)

Note: Quick coupler attached (SMC KK13P-03M, KK13S-03F).

Dimensions

NM-EJR1A

NM-EJR2A

W3,200 ´ D2,417 ´ H1,575 mm

(Not including signal tower) W3,200 ´ D2,417 ´ H1,575 mm

(Not including signal tower)

Mass

NM-EJR1A

NM-EJR2A

Approx. 2,250 kg (main body only)

Approx. 2,350 kg (main body only)

Environmental requirements

 Ambient temperature 20°C ± 10°C

Operating controls

Interactive operation via color LCD touch screen (Front and Rear: Standard equipment)

English/Japanese/Chinese selectable with a single button Recognition screen (displays the recognized board image on a superimposed window)

Hierarchical menu (Operator/Engineer)

I/O functions 3.5-inch FDD and SD card slot (standard equipment)

Communication RS-232C

Coating color

Standard color

White: W-13 (G50)

Insertion tact time

Max. tact time: Approx. 0.17 s/point (0.20, 0.25, 0.36, 0.45 s/point changeable)

0.25 s/point conditions

REMARKS

*1 X-Y table movement at the tact time of 0.17 s/point: Within 35 mm Insertion direction: 0°, 90°, -90° (180°: 0.36 s/point)

*2 The tact time above is enabled only when components are continuously taped. (Tact time varies if there are missing portions.)

*3 Tact time varies between the beginning and the last of the insertion.

*4 Tact time varies when new components are inserted for recovery.

*5 Tact time varies also if 10 or more feeders are operated at a time due to the NC data setting.

*6 Tact time must be set between 0.25 and 0.45 s when inserting components more than 12 mm in diameter or more than 18 mm in height

Applicable components

Insertion pitch: 2.5 and 5.0 mm Height: Hn = Max. 21 mm Diameter: D = Max. 13 mm

Resistors, electrolytic capacitors, ceramic capacitors, LEDs, transistors, filters and resistor networks

Component packaging

Taping (in pack or reel)

REMARKS

Component pack must be lower than 360 mm and width less than 62 mm. Component reel must be up to 360 mm in diameter and 62 mm in width. Bracket and reel shaft are required. Cannot be used on the upper stage of

the supply unit.

Applicable PCB

Demensions

Min. 50 ´ 50 mm to Max. 508 ´ 381 mm

Width-to-length ratio: Width should be equal to or less than length. Consult us for boards having width longer than length.

Allowable insertion area

Min. 50 ´ 40 mm ~ Max. 508 ´ 371 mm

Thickness

1.6 mm ± 0.15 mm (for standard specification)

REMARKS

Boards of thickness from 0.6 mm (min.) to 2.0 mm (max.) are applicable. Even if the board thickness is within the above range, clinched angle of the inserted lead or lead length may vary, or board transfer error may occur depending on the shapes of board or insertion holes. Please contact us in advance.

 Mass

Max. 1 kg per board including inserted components.

Flow direction

Right to left (Standard) or Left to right

Board positioning method

Pin positioning (Standard, without positioning in the Y direction),

REMARKS

Contact us separately for edge positioning.

Insertion pitch

2-pitch specification 2.5 mm and 5.0 mm, or 2.54 mm and 5.08 mm

Insertion direction

4 directions (0°, 90°, 180° and -90°)

Anvil

Cutting & Clinch type system (Piezoelectric detection system)

No. of component inputs

NM-EJR3A  40 types

NM-EJR4A  80 types
