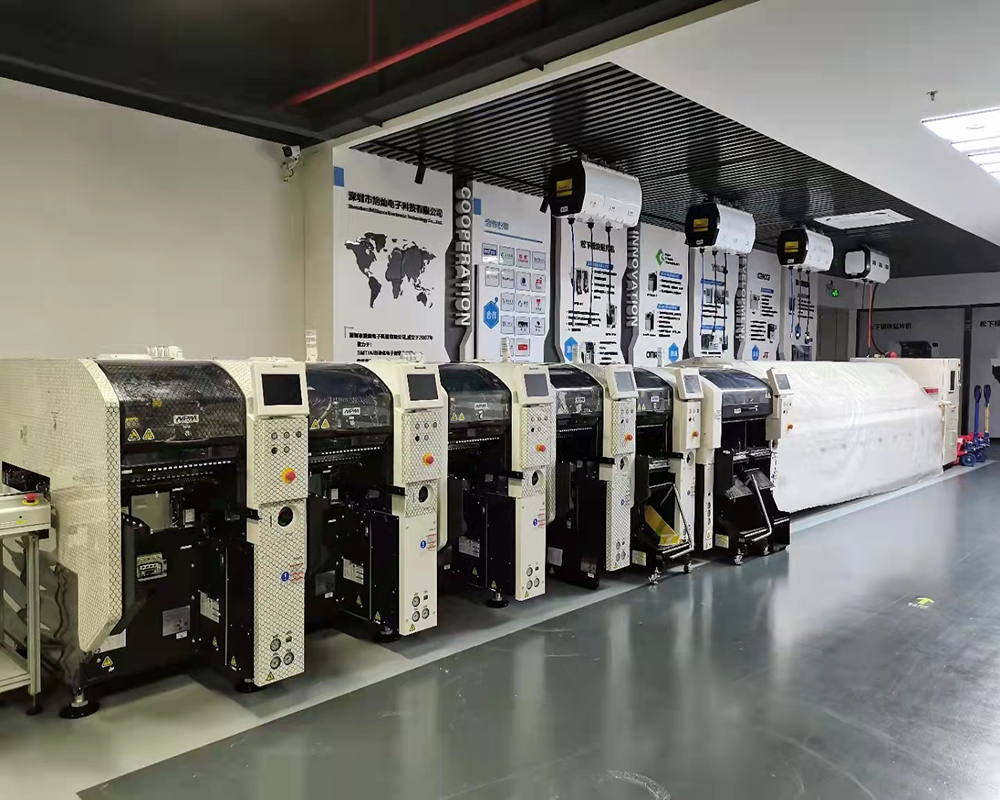

Panasonic NPM-D3 Modular SMT Placement

1.  Flexible board handling system converts to support single and multiple dual-lane operation modes

2. Compact footprint and dual-side operation maximizes factory floor space utilization and scalability

3. Integrates the industry’s only field-scalable multi- recognition camera that combines alignment, thickness and 3D coplanarity into one time-saving, process-improving step

Specification of Panasonic SMT Placement

Product name		Panasonic Chip Mounter NPM Series SMT Placement
Model		NPM-D3	NPM-W2	NPM-TT2	NPM-W2S
Concept		Dual-gantry, multi-head, process-driven module	Dual-gantry, multi-head, process-driven module	Dual-gantry, multi-head, process-driven module	Single-gantry, multi-head, process-driven module
Drive system		High-accuracy, low-maintenance, linear-motor driven gantry(s) system
Component alignment		Multi-recognition digital camera
Head design options		Inline array of 16, 12, 8, 3 and 2(D3) nozzle heads
Applicable heads		16, 12, 8, 2	16, 12, 8, 3	8, 3	16, 12, 8, 3
Board dimensions (Single lane)		L 510mm x W 590mm	L 750mm x W 550mm 1200mm long PCB opt	L 510mm x W 590mm	L 750mm x W 550mm 1200mm long PCB opt
Board dimensions (Dual lane)		L 510mm x W 300mm L 510mm x W 550mm *1	L 750mm x W 260mm L 750mm x W 510mm *1 *2	L 510mm x W 300mm L 510mm x W 550mm *1	L 750mm x W 260mm L 750mm x W 260mm *1 *2
Placement accuracy	Chip	±25μ Cpk ≥ 1.0 *4	±25μ Cpk ≥ 1.0 *4	±40μ Cpk ≥ 1.0	±25μ Cpk ≥ 1.0 *4
	QFP	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0
Throughput	Ideal	Up to 84,000 CPH	Up to 77,000 CPH	Up to 36,000 CPH	Up to 38,500 CPH
	IPC9850	63,300 CPH (1608C) *3	59,200 CPH (1608C) *3	8,300 CPH (208 QFP) *3	30,000 CPH (1608C) *3
Component range	Min	03015 microchip *4	03015 microchip *4	0402 microchip	03015 microchip *4
	Max	100mm x 90mm	150mm x 25mm	150mm x 25mm	150mm x 25mm
	Height	28mm	30mm	30mm	30mm
	Special height	-	40mm	-	40mm
	Insertion force	.5N ~ 50N	.5N ~ 100N	.5N ~ 100N	.5N ~ 100N
Feeder capacity	Reels w/ no tray feeder	68	120	120	120
	Reels w/ tray tower	24	86	86	86
	Reels w/ twin tower	N/A	60	N/A	60
	Reels w/ 2 tray towers	N/A	N/A	52	N/A
	Trays w/ tray tower	20	20	20	20
	Trays w/ twin or 2 tray
